One of the most common misconceptions about external wall insulation (EWI) is that every building can be detailed in the same way.
It cannot.
Building construction, substrate, height, wind-driven rain exposure, fire requirements and warranty conditions can fundamentally affect how an external wall system should be designed.
On framed buildings in particular, an important consideration is whether the EWI system can be direct fixed or whether a drained cavity construction is required.
There is no universal answer. The correct solution depends on the complete wall construction and the conditions of the individual project.
What is direct-fix EWI?
In a direct-fix EWI system, the external wall insulation is installed directly onto a suitable supporting wall or sheathing construction without introducing a drained cavity behind the insulation.
This can create a comparatively straightforward external wall build-up with fewer layers and interfaces.
However, direct fixing is not automatically suitable for every substrate, building or location.
For example, Baumit's current StarSystem Mineral – Direct Fix Agrément includes defined applications to externally sheathed light-gauge steel frame construction, as well as masonry and concrete supporting walls.
StarSystem Nature – Direct Fix covers a mechanically fixed wood fibre external thermal insulation composite system (ETICS) for externally sheathed structural timber-frame supporting walls within its assessed scope.
Both systems require the proposed application to remain within the scope of the relevant certification and require project-specific design.
The question therefore should not simply be:
"Can EWI be fixed directly onto this board?"
The better question is:
"Can this complete external wall construction, on this building and in these conditions, be safely and appropriately direct fixed?"
Why exposure matters when designing EWI
The UK experiences substantial regional differences in wind-driven rain exposure.

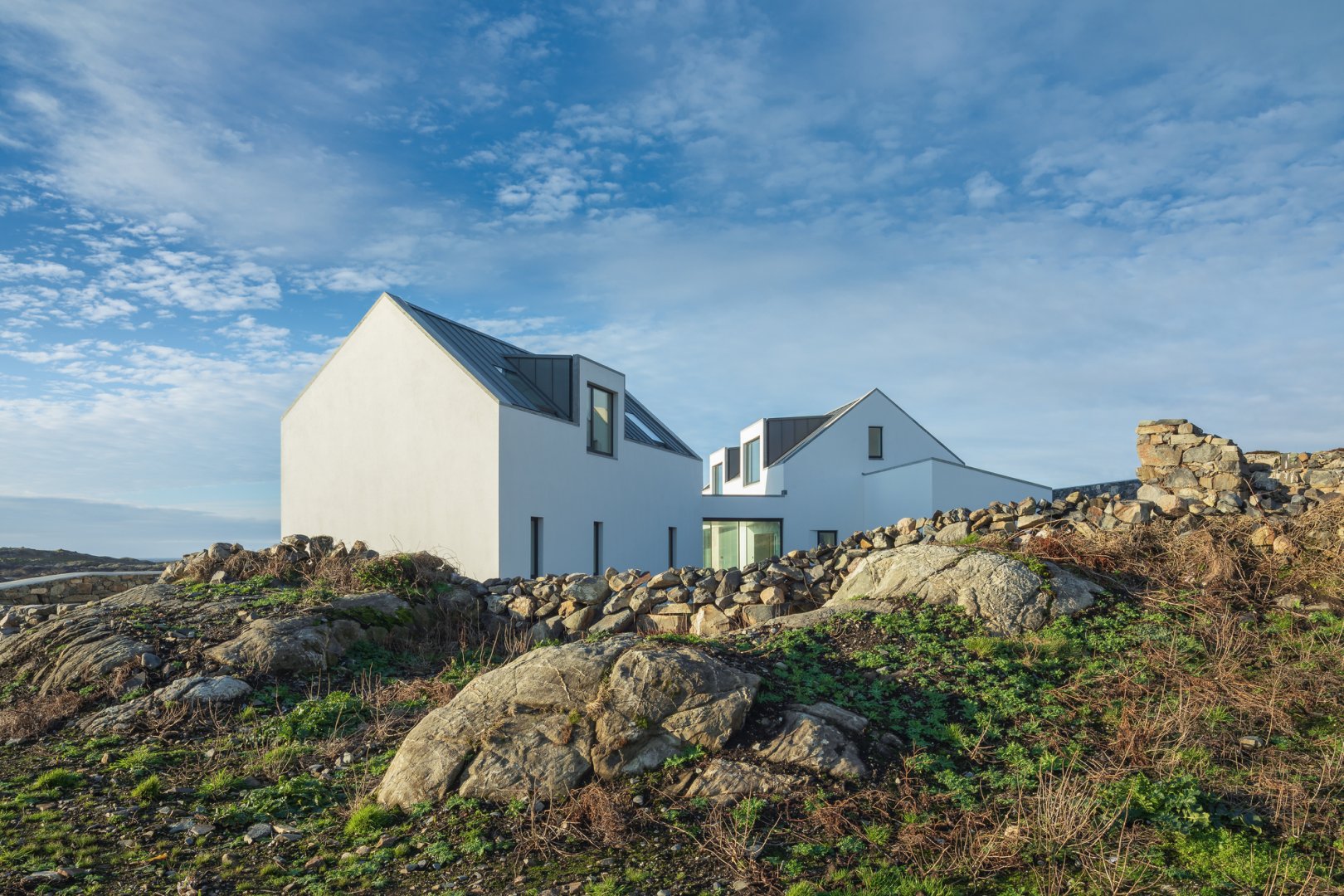

A façade in a relatively sheltered inland location does not experience the same conditions as a building in an exposed coastal or upland environment.
Orientation, building height, local topography and surrounding buildings can also influence the amount of wind-driven rain experienced by an individual elevation.
For framed construction in particular, moisture management therefore needs to form part of the overall façade design.
This means considering not simply whether the external insulation itself can withstand weather exposure, but how the complete wall build-up manages moisture.
That includes the render system, insulation, sheathing, membranes, supporting frame, openings, penetrations and other interfaces.
What is a drained cavity EWI system?
A drained cavity EWI system introduces a controlled cavity behind the external façade construction.
Its purpose is not simply to provide ventilation.
The cavity forms part of the wall's moisture-management strategy, providing a route through which unintended water ingress can be managed and discharged.
INCA has published dedicated technical guidance covering external wall insulation systems incorporating drained cavities, recognising that these systems have different design and installation requirements from other EWI methodologies.
For framed construction, this can be particularly relevant where project conditions, warranty requirements or the proposed wall design require a drained cavity approach.
What does a drained cavity do?
A correctly designed drained cavity provides a controlled space within the external wall construction.
Where water penetrates beyond the outer façade, the cavity can help manage that moisture and allow it to be safely drained rather than becoming trapped within the wall build-up.
However, introducing a cavity does not remove the need for careful façade design.
It creates an additional layer within the construction which needs to be coordinated with the wider building.
A drained cavity creates its own design responsibilities
A cavity should not automatically be considered the "safer" solution.
Introducing one creates additional components, interfaces and technical requirements that need to be properly designed.
Depending on the system and building, these can include:
- cavity width
- support rails or spacer systems
- drainage
- ventilation
- cavity barriers
- fire stopping
- window and door openings
- compartment lines
- penetrations
- base details
- roof and parapet terminations
- interfaces with adjoining construction
Fire performance is particularly important because the introduction of a cavity creates a concealed space that needs to be considered as part of the overall fire strategy.
Moisture also needs to be effectively tracked and discharged.
A poorly designed cavity can therefore create different risks from those it was intended to address.
This is why appropriate third-party system certification, technical assessment and project-specific façade design remain essential.
Direct fix vs drained cavity EWI: what should designers consider?
There is no single rule that determines whether every framed building should use direct-fix or drained-cavity EWI.
A project-specific design review should consider the complete external wall construction, including:
- supporting frame construction
- sheathing or carrier board
- building height and geometry
- building use
- wind-driven rain exposure
- local environmental conditions
- fire strategy
- cavity barrier requirements
- structural movement
- wind loading
- fixing design
- membranes
- drainage strategy
- windows and doors
- penetrations and services
- warranty-provider requirements
- scope of relevant third-party certification
These factors need to be considered together rather than individually.
For example, knowing that an EWI system can be installed onto a particular sheathing board does not, on its own, demonstrate that the complete wall construction is appropriate for a particular building.
Why third-party EWI certification matters
Third-party certification provides important evidence about the assessed scope and performance of an external wall insulation system.
However, certification needs to be read and understood correctly.
The system's certificate may define matters such as:
Supporting Wall → Components → Fixing Method → Performance → Design Requirements → Installation → Limitations
These conditions are particularly important when considering less conventional applications, including framed construction and buildings in more exposed locations.
Certification provides evidence for the assessed system and its defined applications, but it does not remove the need to consider the specific conditions of the individual building.
Design the complete external wall, not simply the render
Perhaps the most important principle is that the decision between direct-fix and drained-cavity EWI should be made during the design and specification process, not when installers arrive on site.
Modern external wall specification increasingly requires the complete façade to be considered as one coordinated assembly.
The insulation and render are important components.
But so are the substrate, sheathing, membranes, fixings, cavity barriers, openings, penetrations, movement joints and every other interface that contributes to the performance of the finished wall.
That is why Baumit advocates project-specific façade design supported by appropriate system certification and technical assessment.
Because when it comes to external walls, the best detail is not necessarily the one used on the previous project.
It is the detail that is right for this building.
Further reading: INCA – Technical Guidance: External Wall Insulation Incorporating Drained Cavities.
